macOS app

A native SwiftUI front-end that drives the attackmap CLI and renders its results — pick a repo, run a scan, and browse findings, exploitability, attack paths, diagrams, and the AI review without leaving the app.

Install

There is no prebuilt distribution — build the app from source at mlaify/AttackMap-mac. It drives the attackmap CLI, so install that too:

pipx install git+https://github.com/mlaify/AttackMap.git

Requires macOS 15 (Sequoia) or later.

Features

  • Repo picker + Run/Cancel with live progress and ETA.
  • Analyzers — Automatic (by language) or pin specific modules.
  • AI review — provider (Claude / OpenAI · Codex), model, reasoning, and Fast toggle. API keys are stored in your login Keychain.
  • Watch mode — auto re-scan on file changes, with new-vs-resolved deltas.
  • Result views — Overview, Findings, Exploitability, Attack paths, Attack surface, Diagrams (rendered Mermaid), Review, and AI Review.

The app feature-detects the installed CLI, so newer options light up as you upgrade. Source and issues: github.com/mlaify/AttackMap-mac.

Screenshots

A full run against OWASP Juice Shop, from configuring the scan to browsing exploitable paths.

Configure and run

Pick a repo, choose an LLM mode (or none for a fast heuristic-only pass), toggle CVE cross-referencing and Watch mode, then Run scan.

Scan configuration

Live progress with a per-file bar and ETA while scanning, then the dependency CVE cross-reference against OSV.dev:

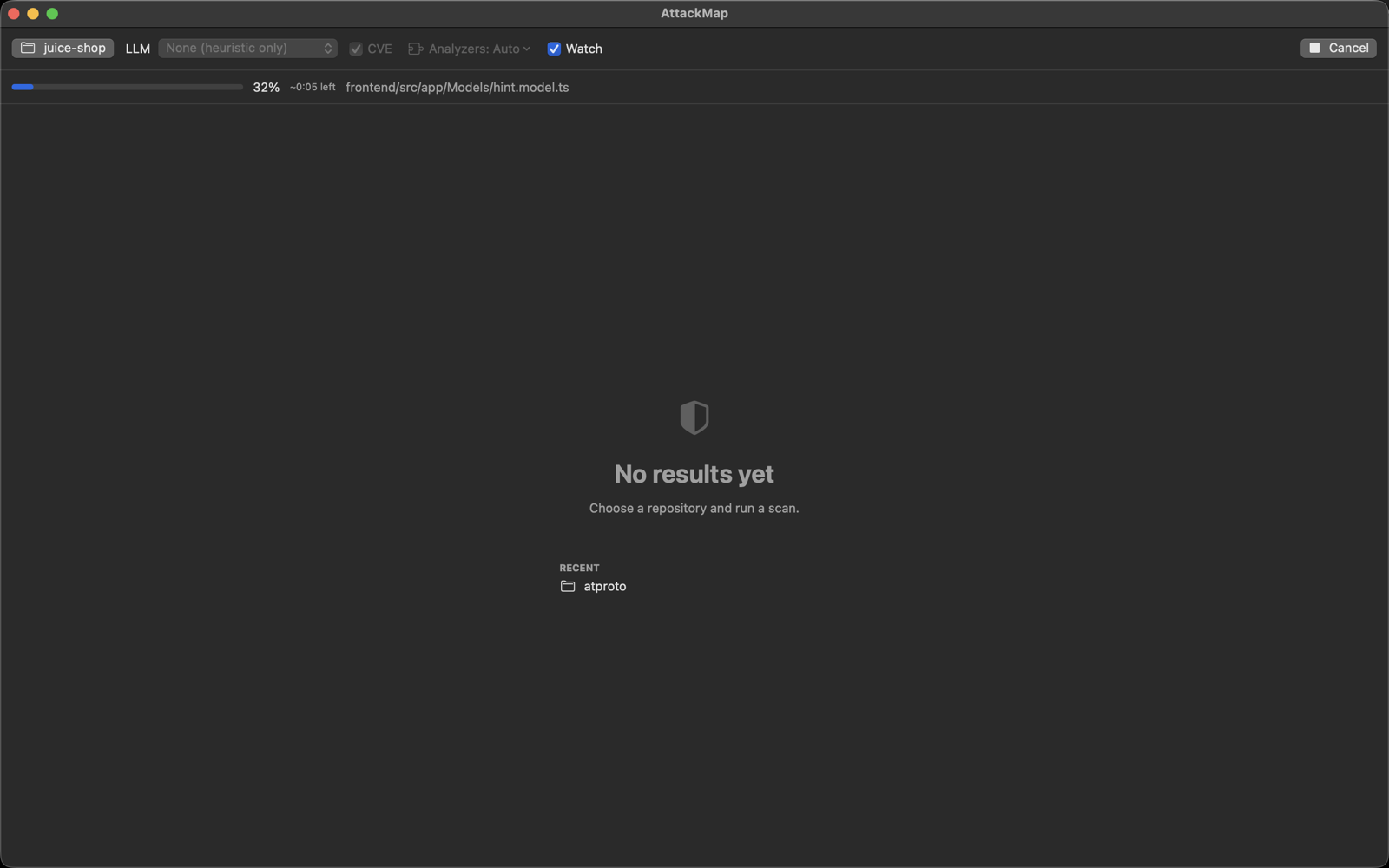

Scan in progress

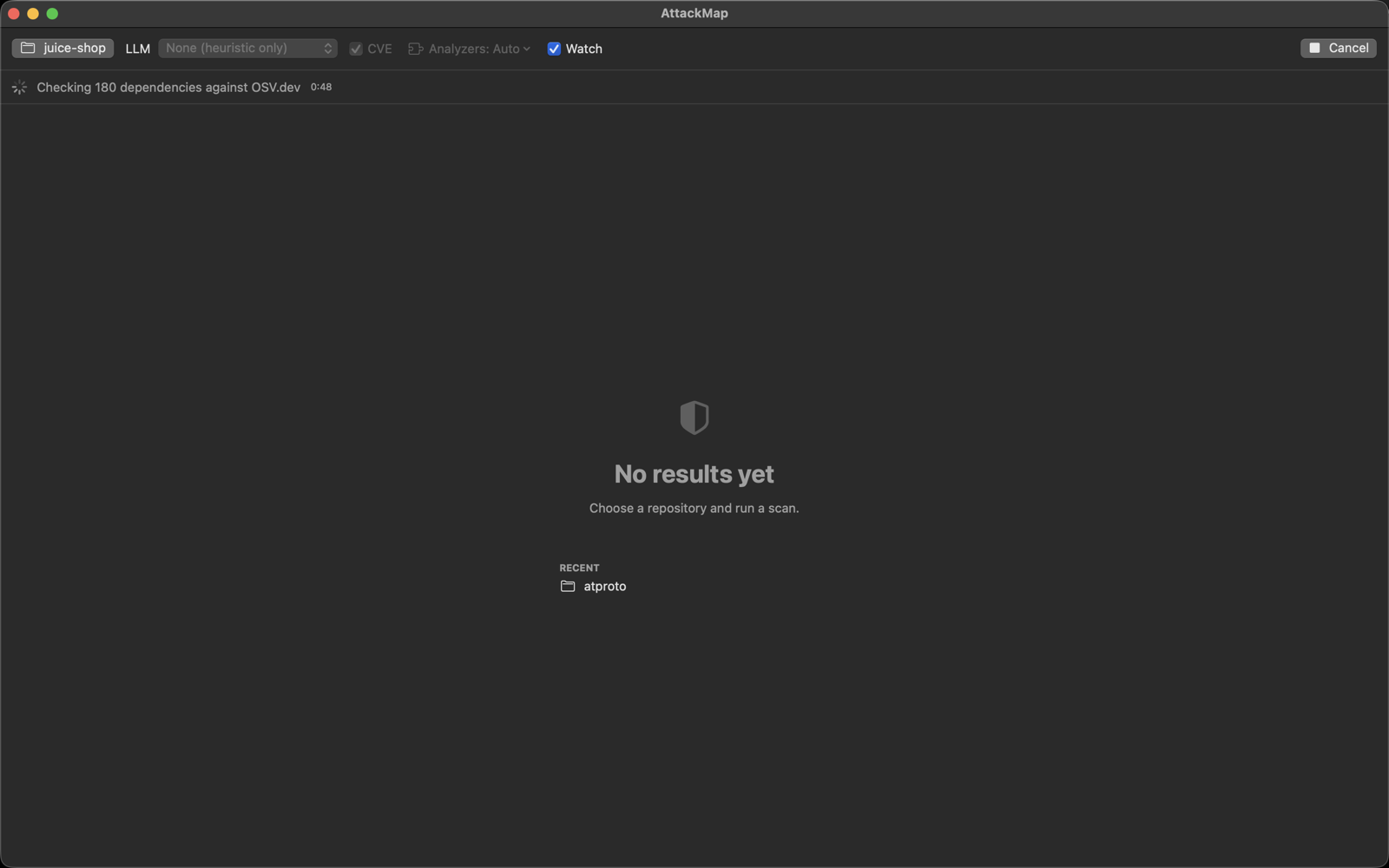

CVE lookup against OSV.dev

Overview

Headline counts, findings by severity, and the single most exploitable route→sink path, front and center.

Scan overview

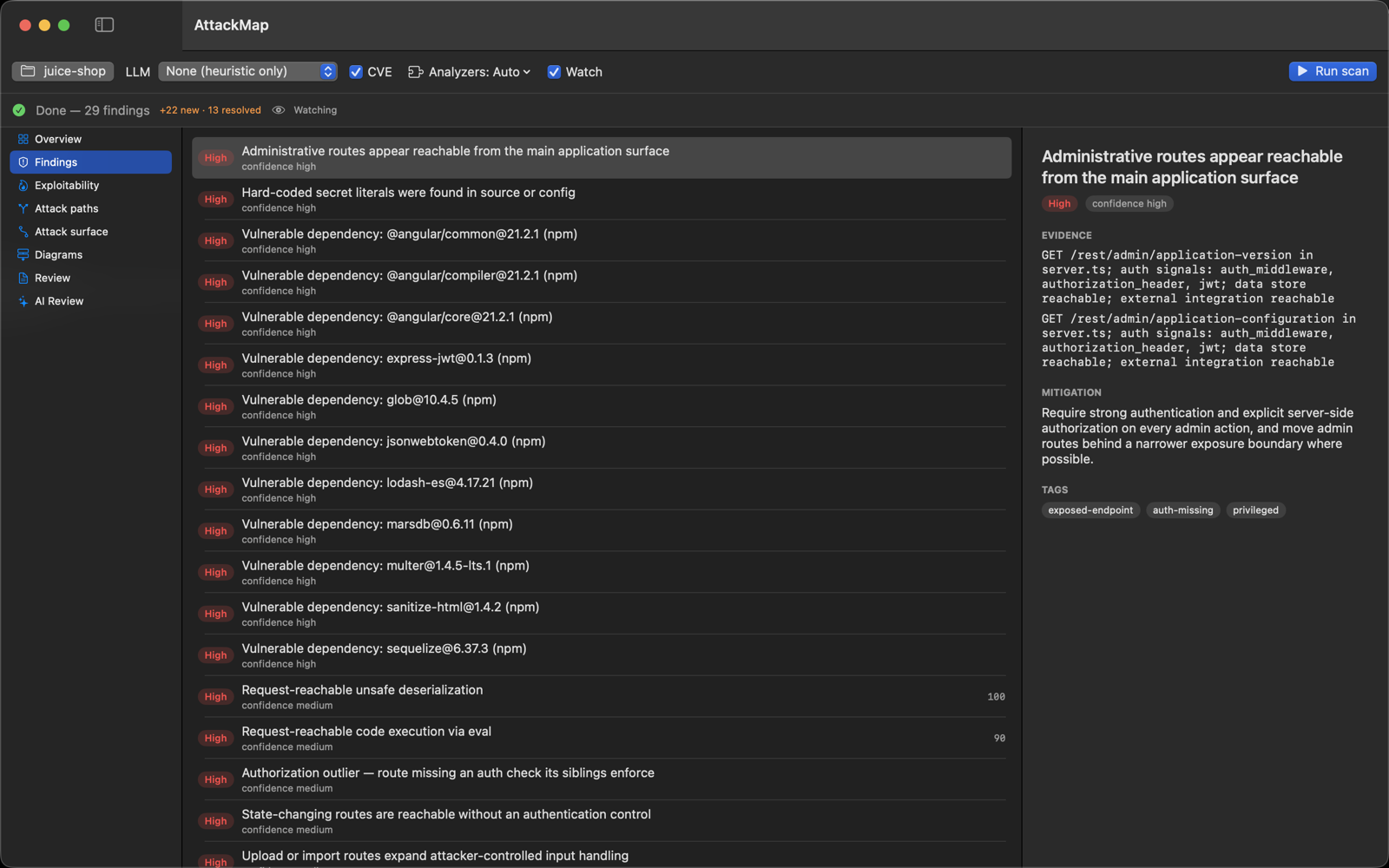

Findings

A master-detail list — every finding with its severity, evidence, remediation, and ATT&CK tags.

Findings

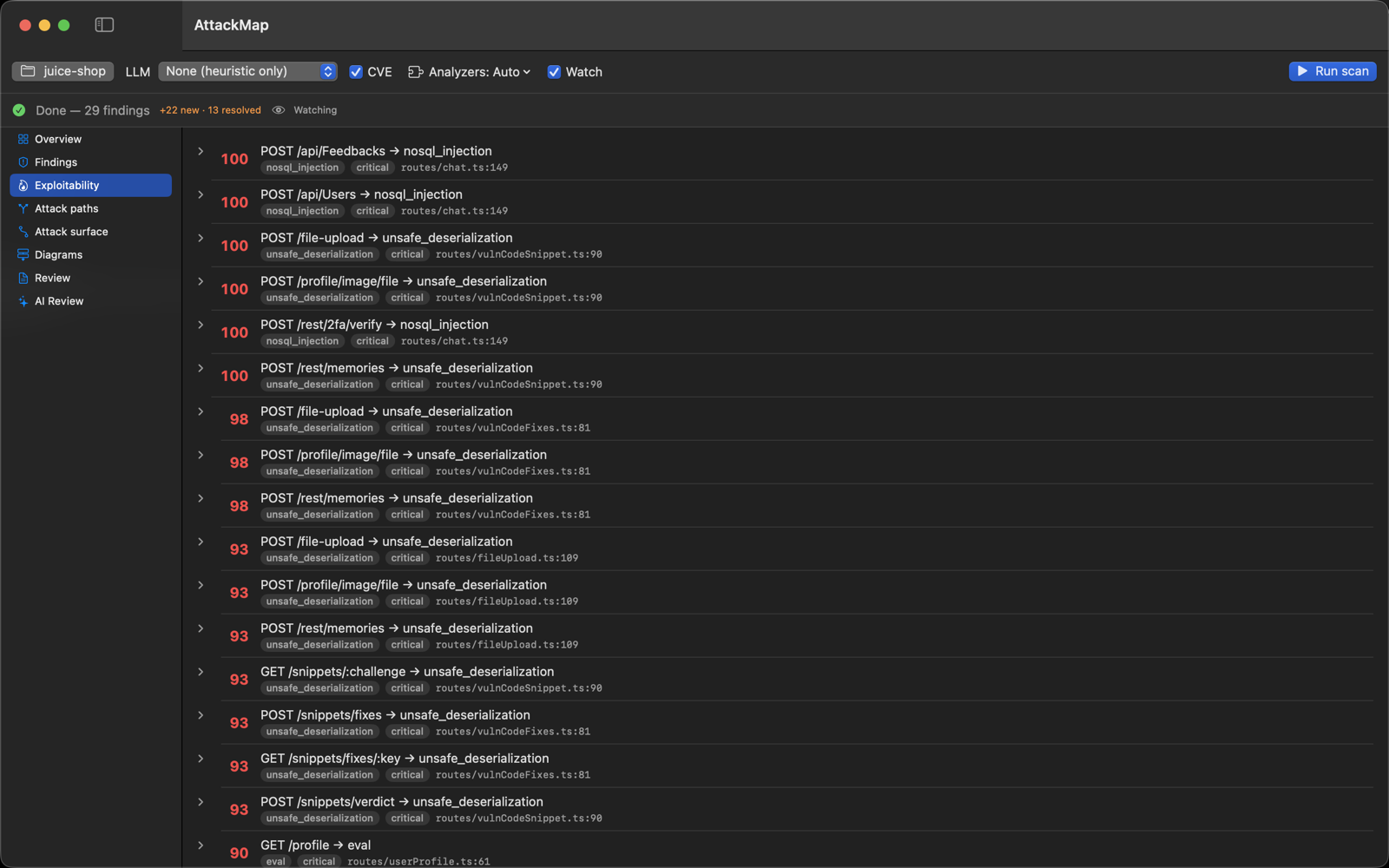

Exploitability

Route→sink paths fused and ranked by an "exploitable now" score, so triage leads with the combinations that actually matter.

Exploitability ranking

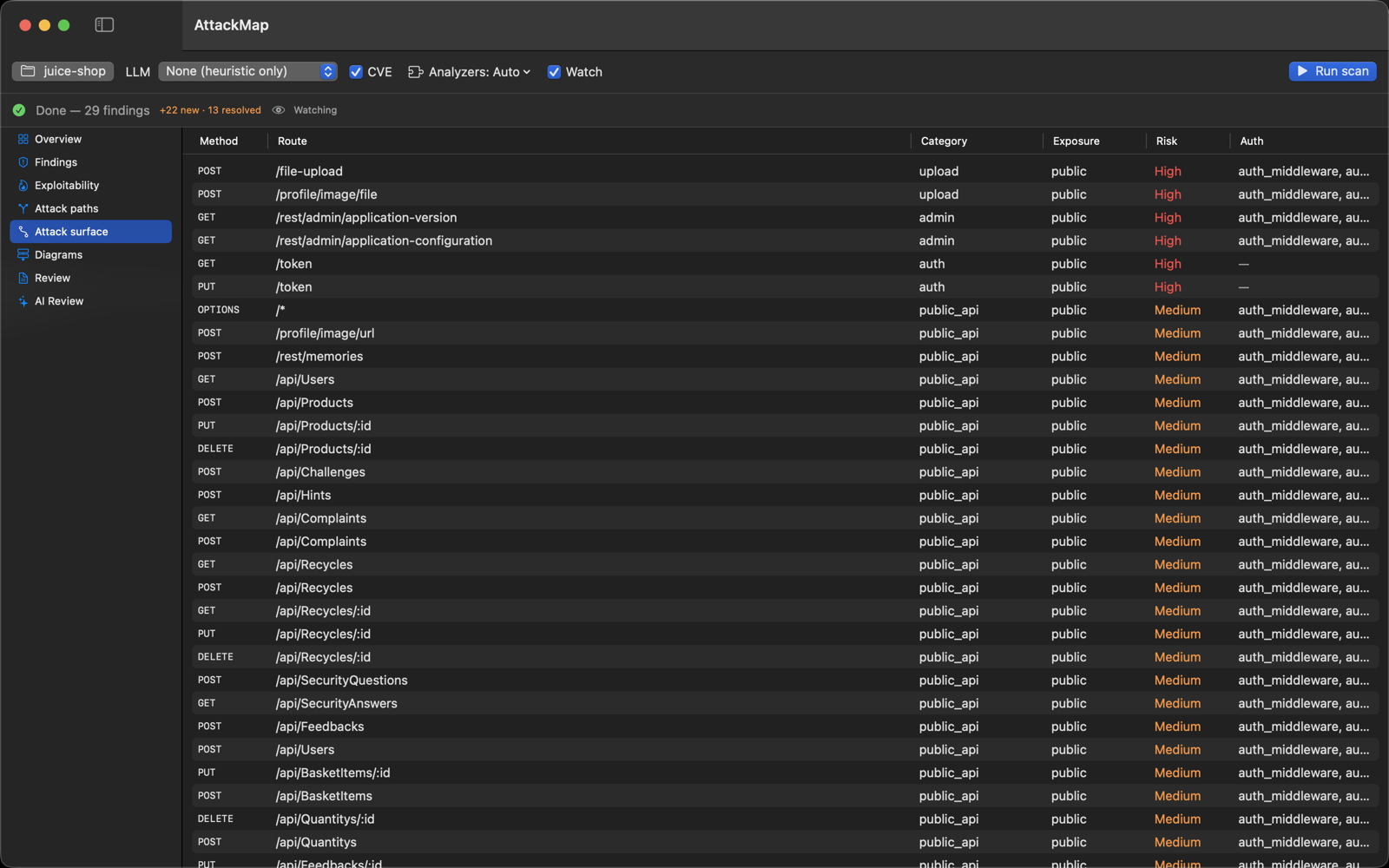

Attack surface

The full route inventory — method, path, category, exposure, risk, and the auth signals observed on each.

Attack surface

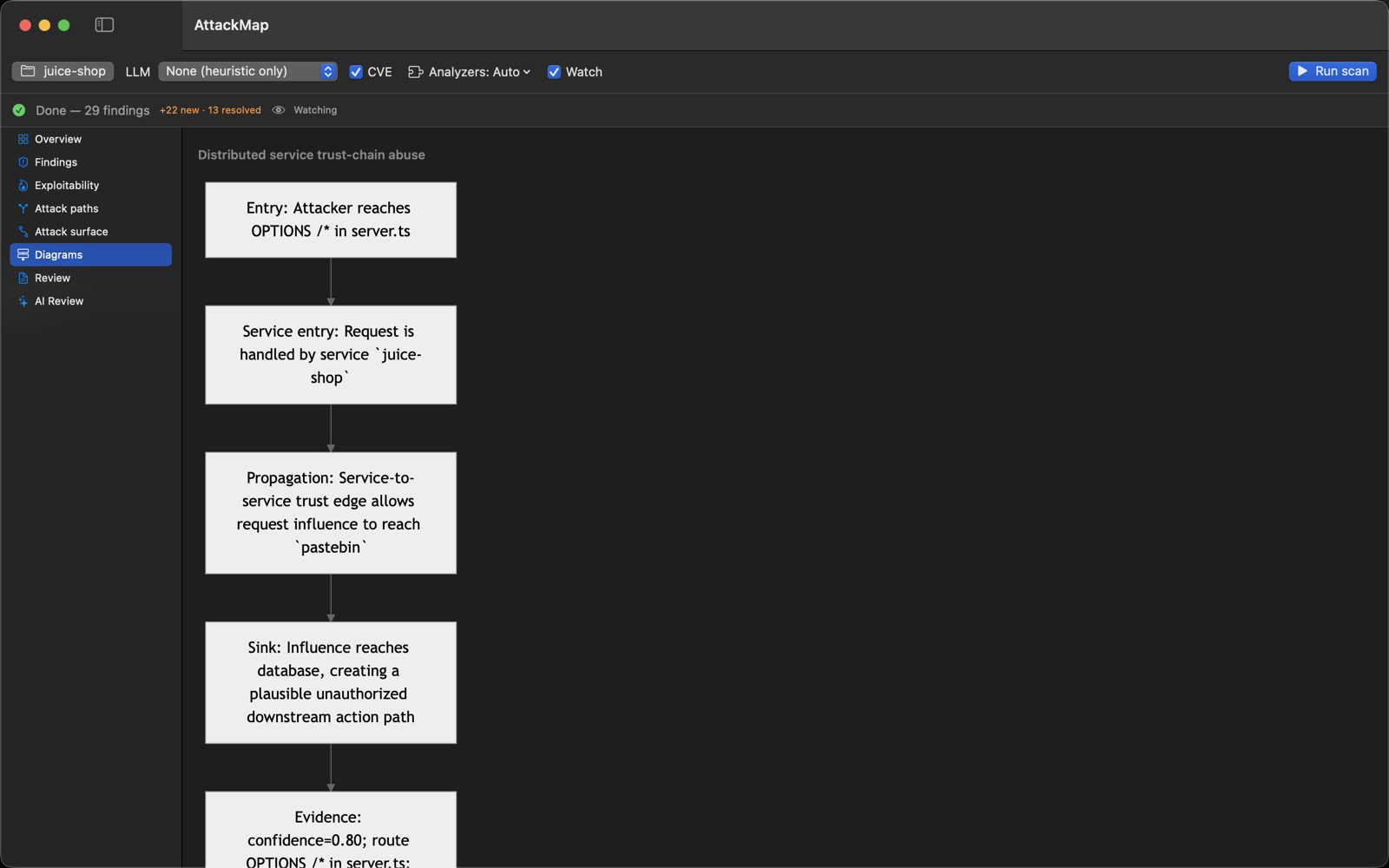

Diagrams

Attack paths rendered as offline Mermaid flowcharts (entry → service → sink).

Attack-path diagram

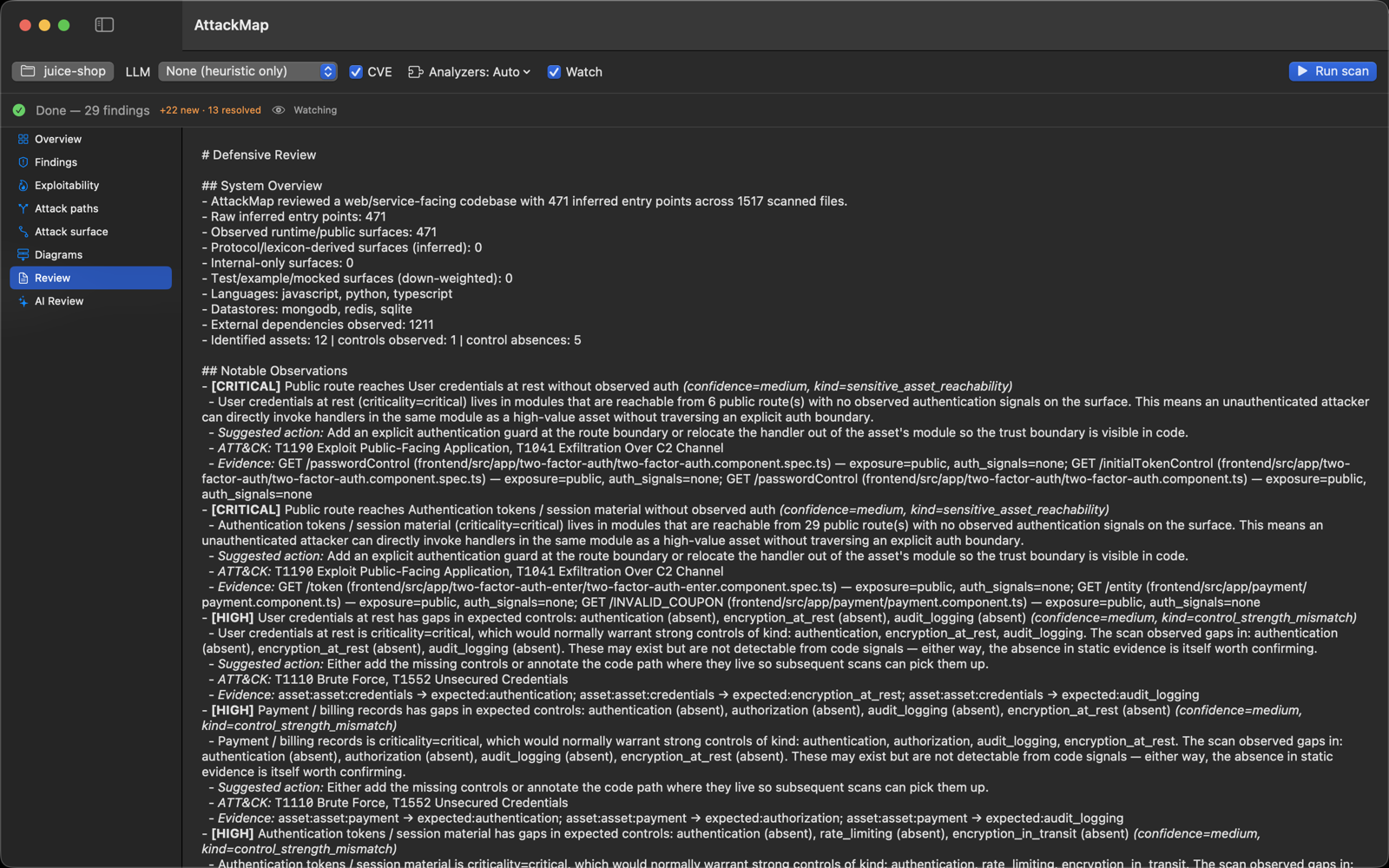

Defensive review

The full Markdown review — system overview and notable observations with suggested actions and ATT&CK mappings.

Defensive review
